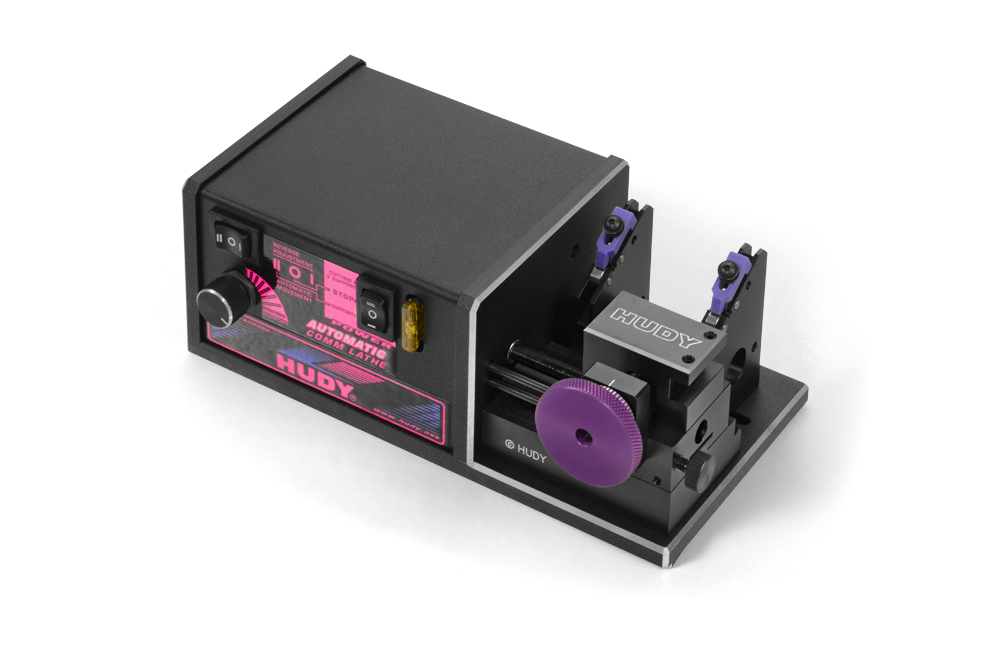

HUDY Executive Automatic Comm Lathe - Slot - BBG

HUDY Executive Automatic Comm Lathe - Slot - BBG

HUDY #101506-B

• the world's first fully automatic comm lathe for slot car motors, • operation speed adjustment, • revolution in the lathe market, • best choice for professionals, Main features:, • ball-bearing guides, • selected stands with plastic clips, • installed

356,34 € s 20.00% DPH
Na sklade
Kúpiť lokálne
Otázka k produktu

Main features:
The world's first fully automatic comm lathe for slot car motors with a unique middle shaft belt drive system featuring ball-bearing guides

• comm lathe for stock motors
• black hard-anodized surface
• selected stands with ball-bearing guides (HUDY design) and plastic clips for armature
• stands keyed to common guides for a perfect alignment
• revolutionary belt drive system which spins the armature through a middle shaft, and results in vibration-free cut and main motor extended life
• ultra-fine-pitch lead screws for super-accurate tool movement
• super-accurate backlash limitation of the tool block and supports secure vibration-free movement
• adjustable backstop screw with small purple wheel
• regulated speed for fully automatic cut
• engraved unique ID
• all accessories included

Included:
• installed main motor with connection for a 12VDC power source
• installed gearbox and electronics, switch, connection cable
• fuse overload protection
• glued anti-vibration pads eliminate all vibrations
• handy carrying case
• drive belts
• shims for tool height adjustment
• motor anti-vibration washer
• 3 hex-wrenches for lathe adjustment
• cutting tool not included - #101081 Diamond Cutting Tool is recommended
• don't forget to check out recommended option parts

Hudy Comm Lathes have become synonymous with the most advanced, high-tech comm lathes world-wide. What makes Hudy Comm Lathes superior is the philosophy used in their design, development, and test and production phases.

Surface of the supports is treated to ensure smooth movement of the tool block. It is possible to easily and precisely adjust the movement of the cutting tool operating wheel. Tighten or loosen the adjustment screw in the left side of the tool head, which adjusts the pressure on the plastic insert-pad, resulting in fine control of the tightness of tool head movement.

Details:

This lathe comes with ball-bearing guides, but it is also available with ultra-hardened steel "V" guides.
Do not know which type to purchase? Read the FAQ.

A fine pitch thread is used on the feed screw; one graduation on the feed knob corresponds to a 0.01 mm movement of the tool bit, all this without backlash.

Accurate adjustment of stand positioning.
Stands are produced in pairs to ensure 100% similarity, and are both keyed into a common guide to ensure perfect alignment. Plastic clips for armature are included as standard accessories.


Revolutionary armature axial support. Shaft spins between three ball bearings in Axial Support - no vibrations whatsoever!
#101900 Hudy Axial Support available as option only. A "must have" option for professional cutting.
