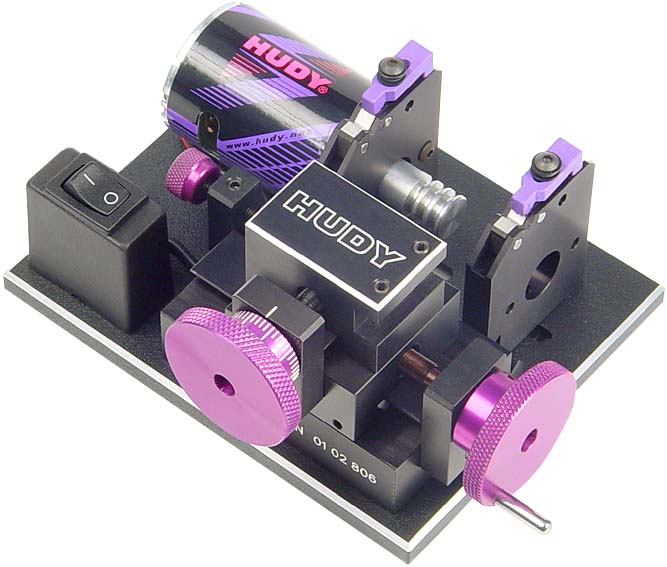

HUDY Advanced Comm Lathe - Modified - HSG

HUDY Advanced Comm Lathe - Modified - HSG

HUDY #101001

• comm lathe for modified motors, • black hard-anodized surface, • selected stands with ultra-hardened steel "V" guides and plastic clips for armature, • stands keyed to common channel for perfect alignment, • ultra-fine pitch lead screw for

190,92 € s 20.00% DPH
Na sklade
Kúpiť lokálne
Otázka k produktu

Main features:

• comm lathe for modified motors
• black hard-anodized surface
• selected stands with ultra-hardened steel "V" guides and plastic clips for armature
• stands keyed to common channel for perfect alignment
• ultra-fine pitch lead screw for super-accurate tool movement
• super-accurate backlash limitation of the tool block and supports ensures vibration-free movement
• installed slave motor, connection cable, switch box
• engraved unique ID
• all accessories included

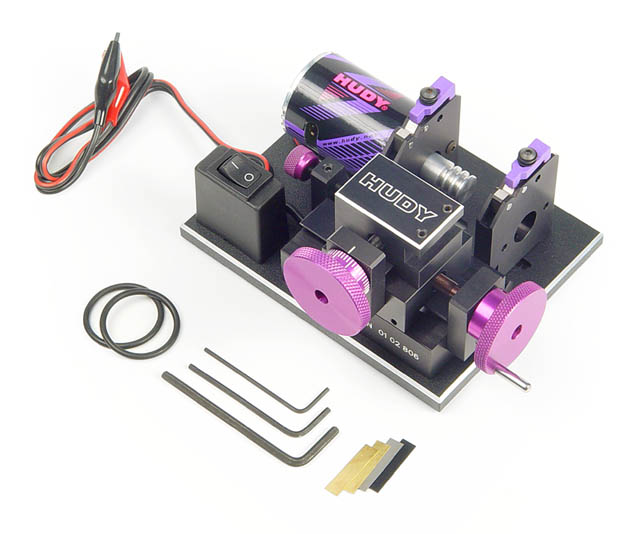

Included:

• installed slave motor with connection to 4.8V DC source (4x1.2V battery pack)
• installed switch box, connection cable
• adjustable back stop screw with small purple wheel
• glued anti-vibration pads eliminate all vibrations
• handy carrying case
• drive belts
• shims for tool height adjustment
• 3 hex-wrenches for lathe adjustment
• cutting tool is not included - #101081 Diamond Cutting Tool is recommended
• don't forget to check out recommended option parts

Hudy Comm Lathes have become synonymous with the most advanced, high-tech comm lathes world-wide. What makes Hudy Comm Lathes superior is the philosophy used in their design, development, and test and production phases. To design our lathes, our engineers use the most advanced 3D CAD system to ensure the best possible performance. Then, computer controlled CNC machines produce the parts to highly accurate specs from high-tech alloys. Next, those parts are assembled by our specifically trained technicians, who then tune these lathes to final factory specifications. As a result, the customer receives, right out of the box, the most advanced, precise, and efficient comm lathe.

Details:

This lathe comes with ultra-hardened steel "V" guides, but it is also available with ball-bearing guides.
Do not know which type to purchase? Read the FAQ.

A fine pitch thread is used on the feed screw; one graduation on the feed knob corresponds to a 0,01 mm movement of the tool bit, all this without backlash.

Surface of the supports is treated to ensure smooth movement of the tool block.
It is possible to easily and precisely adjust the movement of the cutting tool operating wheel. Tighten or loosen the adjustment screw in the left side of the tool head, which adjusts the pressure on the plastic insert-pad, resulting in fine control of the tightness of tool head movement.

Accurate adjustment of stand positioning.

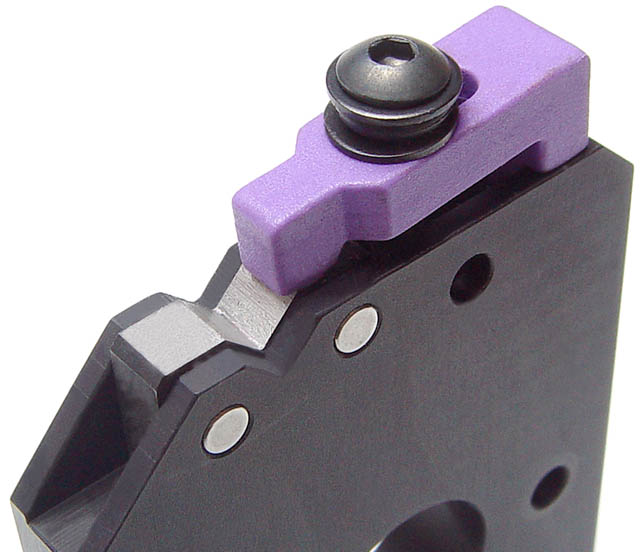

Stands are produced in pairs to ensure 100% similarity, and are both keyed into a common channel to ensure perfect alignment. Plastic clips for armature are included as standard accessories.

New small wheel for backstop adjustment.

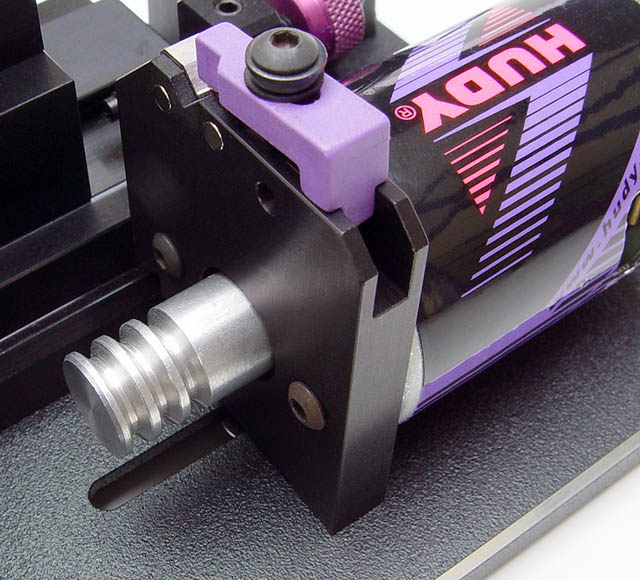

Revolutionary armature axial support. Shaft spins between hardened steel “V” guide and top ball bearing in Axial Support - no vibrations whatsoever! #101901 Hudy Axial Support available as option only. A "must have" option for professional cutting.
